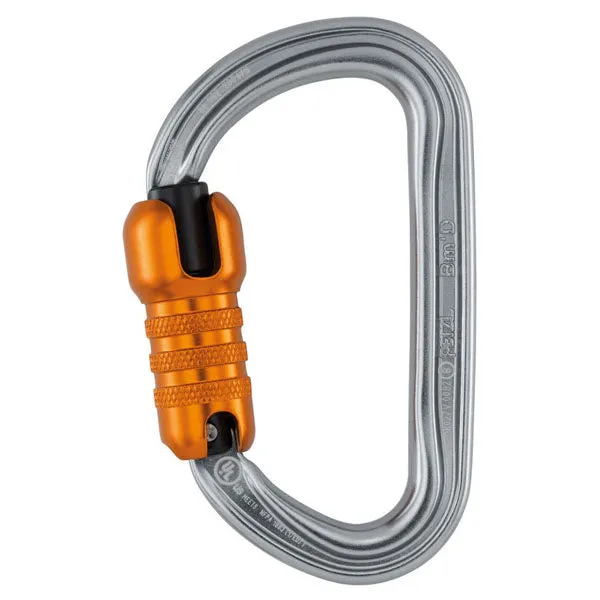

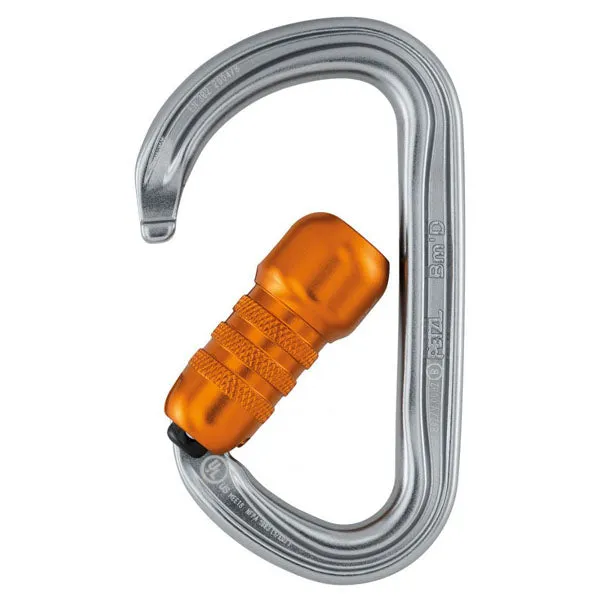

The Bm’D lightweight asymmetrical carabiner is made of aluminum. It has a D shape particularly suited for connection to diverse equipment such as descenders or positioning lanyards. Its fluid interior design and Keylock system facilitate handling. The Bm’D carabiner has the TRIACT-LOCK automatic locking system. The sleeve is reinforced for greater front and lateral gate strength. BmD may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.
Features:
- D shape is particularly suited for connection to equipment such as descenders or positioning lanyards
- Aluminum carabiner is light, reducing the weight of equipment the worker at height needs to carry
- Sleeve is reinforced for greater front and lateral gate strength
- May be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device
- Easier handling:
Fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
Keylock system to avoid any involuntary snagging of the carabiner - H-shaped cross-section:
Ensures an improved strength-to-weight ratio
Protects markings from abrasion - TRIACT-LOCK automatic locking system with triple-action gate opening

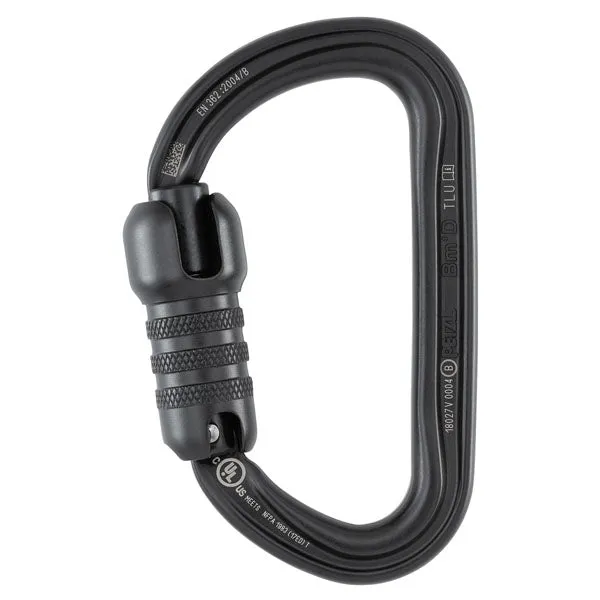

- Also available in black
Product Specifications
| Product # | M032AA00/M032AA01 |
| Product Name | BmD |
| Weight | .24 lb |
| Width | 4.33 in |
| Length | 4.72 in |
| Height | .08 in |
| Material | Aluminum |
| Locking System | TRIACT |
| Minor Axis Strength | 16 Kn |
| Major Axis Strength | 36 Kn |
| Gate Opening | 18 mm |
| Open Gate Strength | 10 Kn |
| Certification(s) | CE EN 362, EAC, ANSI Z359.12, NFPA 1983 Technical Use, CSA Z259.12 |
Instructions & Warnings
Carabiner Instructions
