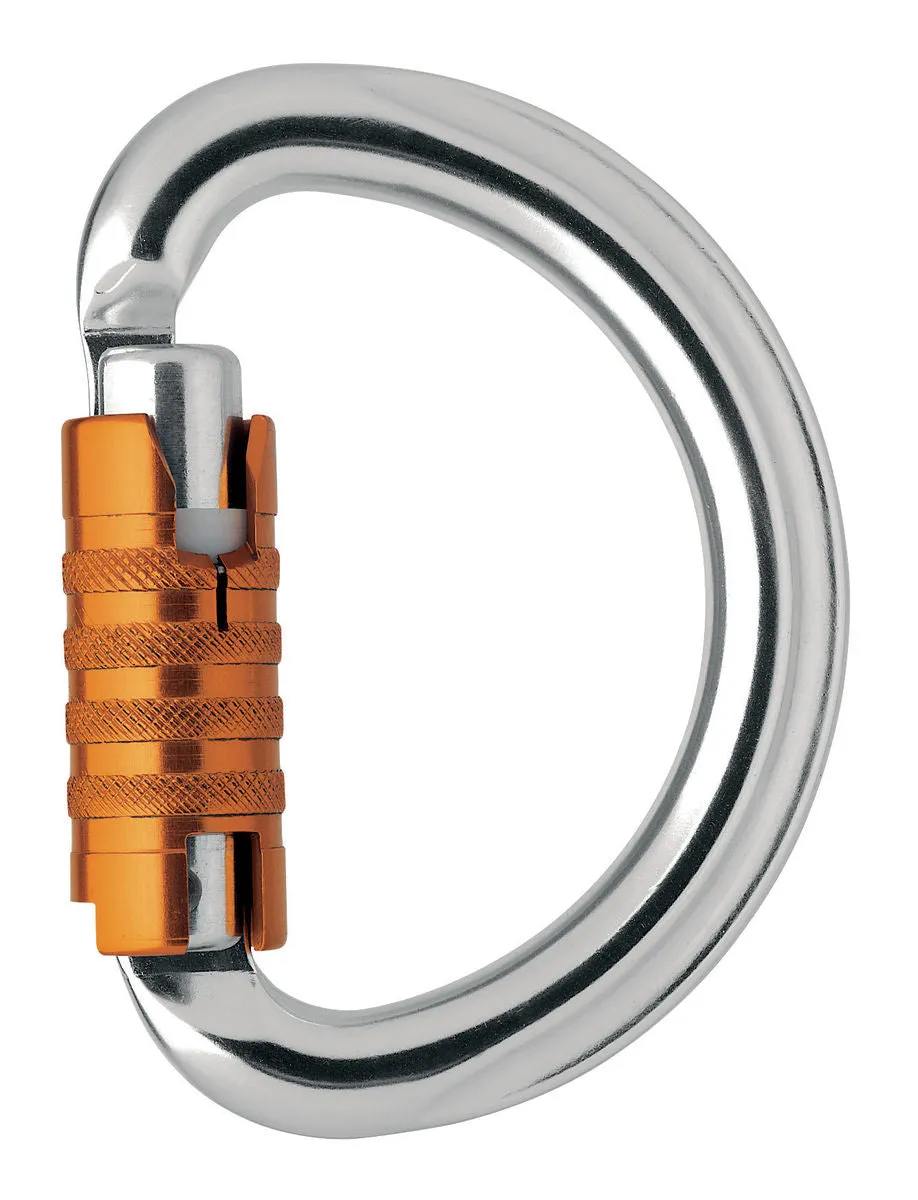

The half-moon OMNI is used to close harnesses that have two attachment points that must be joined with a connector. It has a breaking strength of 15 kN when loaded in any direction.
Description
- Designed to be loaded on all three axes.
- Keylock system
- Available with manual locking system (SCREW-LOCK) or auto-locking system (TRIACT-LOCK)
Specifications
- Material(s): aluminum
- Certification(s): CE EN 362, CE EN 12275 type B, UIAA (M37 TL only)
References
| References | M37 SL | M37 TL |
|---|---|---|
| Weight | 86 g | 92 g |
| Locking system | SCREW-LOCK | TRIACT-LOCK |
| Major axis strength | 20 kN | 20 kN |
| Minor axis strength | 15 kN | 15 kN |
| Open gate strength | 7 kN | 7 kN |
| Gate opening | 22 mm | 22 mm |
| Guarantee | 3 years | 3 years |
| Inner pack count | 10 | 10 |
